KAWASAKI PRECISION MACHINERY

Kawasaki is a leading manufacturer of hydraulic systems and components. With more than 93 years of experience in the hydraulics industry, Kawasaki’s technological leadership and customer-centered philosophy have resulted in building long-term relationships with top companies around the world.

Kawasaki manufactures a wide variety of hydraulic products for mobile, industrial, marine, mining, and various other applications. Renowned products including K3V and K3VL axial piston pumps, PV48 and RCV remote control valves, M5X swing motors, and Staffa high-torque motors are examples of Kawasaki’s success in the hydraulics industry.

Kawasaki hydraulic products and systems are utilized around the world to power a wide array of applications. Our products are routinely applied to the Mobile, Marine, and Industrial markets.

Hydraulic components and systems from Kawasaki Precision Machinery are used around the world in mobile machinery where high performance and reliability are critical. Mobile vehicles require power, efficiency and steady controlled load movements. Designed to operate under severe conditions, Kawasaki motors, pumps, valves and hydraulic control circuits are rigorously tested and documented before shipment. Mobile equipment operators everywhere depend upon the efficiency and reliability of Kawasaki Hydraulic Products.

Kawasaki's K3V, K5V and K7V axial piston pumps are widely used on excavators and other larger construction machines. Kawasaki pumps have earned an excellent global reputation through their exceptional performance, great quality and reliability. Our spherical valve plate and cylinder block provide excellent balancing capability, assuring maximum efficiency regardless of pressure or flow rate.

The M5X Series swash plate type piston motor is equipped with a "shockless" relief valve for precise control. These motors are ideal for swing applications where upper body control is required, such as in large excavators, cranes and forestry machines.

The variable displacement M3B Series axial piston hydraulic motor comes in a wide variety of sizes, providing flexibility to meet applications from small to very large crawler cranes and other construction machines. The motor’s spherical valve plate assures good cavitation resistance and high starting efficiency.

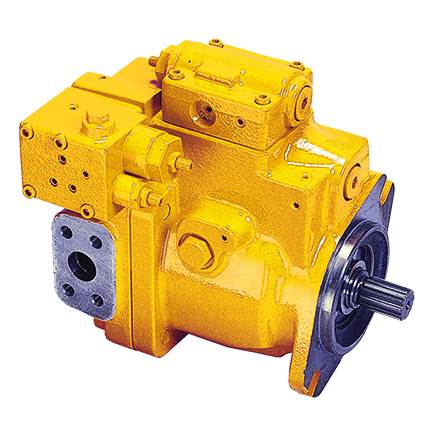

The K3VL Series pumps are based on the K3V design, where more than 2 million units have been supplied to the mobile industry. The K3VL Series pumps were specifically designed for the American and European markets, having SAE and ISO mounting, shaft porting, and through-drive configurations.

Widely used as a winch motor for construction machines such as truck cranes, the compact M3X Series hydraulic motor features a built-in mechanical brake to hold the load securely. Built-in relief and make-up valves allow easy installation directly on a gearbox.

PV48 Series joysticks and RCV Series foot control valves have become the industry standard in mobile applications. The PV48K features an aluminum body and dual area spool design, which results in light weight and reduced operating torque. The RCV Series is available with an internal damping option, which provides excellent stability.

Kawasaki M3X-RG Series low speed, high torque hydraulic motors are the right solution for applications requiring multiplied torque at lower speeds. A variety of motor sizes and gearboxes provide a wide range of geared high torque motors for heavy duty applications.

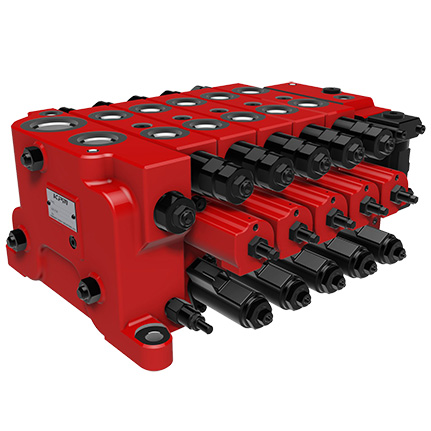

From small cartridge valves that control a single function, to powerful hydraulic motors and pumps with complex multi-valve controls, Kawasaki Hydraulic Components and complete systems are utilized in marine applications around the world. Kawasaki provides supplemental packages for your motor and pump needs. Whether your motor requires a stable brake system or your pump needs a controlled and uniform valve package, Kawasaki’s engineered solutions cover a wide variety of marine applications. Since equipment designers demand well-documented performance and reliability when they choose hydraulic components, Kawasaki offers a wide selection of rigorously tested components to fulfill customer needs. With over 93 years of experience in hydraulic technology, Kawasaki is the first choice of industry leaders.

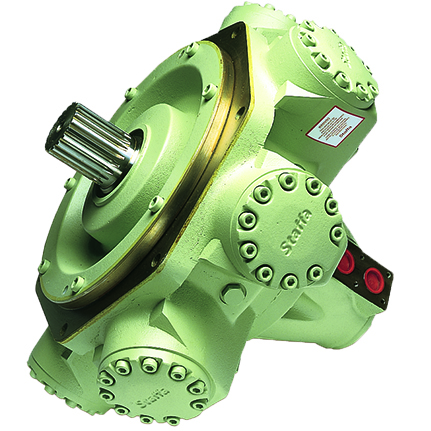

Staffa HMB, HMC & HPC Series radial piston high-torque, low-speed motors meet the needs of applications that demand fine control or have special control requirements. The motor's modular design allows for a variety of valve attachments. It has multi-port surfaces which support several different control valves, such as counterbalance valves for braking pressure in winch drums.

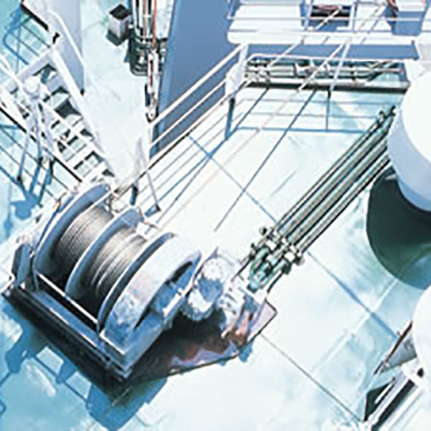

For applications such as mooring winches, where reliability and high-torque are required, a Staffa HMC Series coupled with a ring gear offers a simple, economical solution. The motor’s hydrostatically balanced connecting rod and valve spool design minimizes internal metal to metal contact, reducing friction for high mechanical efficiency and long motor life. Staffa motors have demonstrated their reliability in over 55 years of successful operation worldwide.

Kawasaki high pressure, long life K3VL & K3VG Series hydraulic pumps provide high pressure (4600 & 5000 psi) and continuous driving capability required for applications such as derrick cranes and winches.

The M3X Series fixed displacement swash plate type axial piston motor has high starting efficiency due to its spherical valve plate design. Shaft creep is minimized because of stable retention of the cylinder, enabling the motor to hold a windlass drum steady, with minimal slip. M3B variable displacement axial piston motors are also widely used in marine winch applications to satisfy various torque and speed requirements.

With 93 years of hydraulic experience, Kawasaki remains an industry leader with some of the most technically advanced designs on the market today. Kawasaki’s Hydraulic components are known around the world for providing the high reliability and controllability valued in today’s complex industrial environment. Highly advanced hydraulic control systems contribute to productivity improvements by achieving high- speed, precise control of industrial machinery. Superior technology, global acceptance, and proven reliability make Kawasaki Hydraulic Components a leading choice of machine builders for today’s innovative applications.

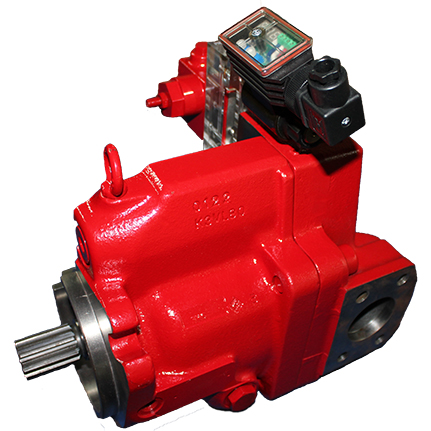

The K3VL Series pump is designed for medium to heavy-duty applications where high pressure and low output pulsation are critical. Various control options are available including load-sensing, electronic flow control, torque limiting and integral unloading control.

HMB, HMC & HPC Series Staffa radial piston high-torque low-speed motors offer consistent, controlled acceleration of loads and smooth, steady operation. Direct drives are a preferred solution to combination drives in injection molding machines and other industrial high torque applications. Engineered for long life under demanding loads, Staffa motors provide exceptional starting torque and mechanical efficiency.

In applications that demand rapid, precise control, the K3VG Series hydraulic pump has built-in electronic controls for outstanding controllability.

Industries that operate around the clock depend upon Kawasaki K3VG Series high efficiency axial piston pumps, which use the same internal components as K3V Series pumps, to ensure ultra-high reliability. In a steel rolling mill, K3VG pumps supply a continuous flow and steady pressure to cylinders that control the movement of the rollers.

Multiple M3X Series axial piston hydraulic motors provide the driving force to turn a giant boring machine efficiently. A special spherical surface type valve plate significantly improves the starting efficiency, enabling the motor to start the machine under full load.

We offer a wide range of Kawasaki parts. For a list of featured products from Kawaski click the "Parts List" button or scroll down to see technical specs.

Variable Displacement Swash Plate Type Piston Pump.
K3VL Series - medium pressure, open circuit, axial piston pumps designed for mobile, industrial and marine use.

Model	Displacement		DISP	Pressure				Pressure	Speed		Speed	Weight		Weight
				psi		psi	bar		rpm		rpm
	cm3	in3	Rated	Peak	Rated	Peak	Self Prime	Max.	lb	kg
K3VL28	28	1.71	4600	5075	320	350	3000	3600	44	20
K3VL45	45	2.75	4600	5075	320	350	270	3250	55	25
K3VL60	60	3.66	3625	4060	250	280	2400	3000	55	25
K3VL80	80	4.88	4600	5075	320	350	2400	3000	77	35
K3VL112	112	6.83	4600	5075	320	350	2200	2700	143	65
K3VL140	140	8.54	4600	5075	320	350	2200	2500	143	65
K3VL200	200	12.20	4600	5075	320	350	1800	2200	209	95

K3VG Series - high pressure, open circuit, axial piston pumps designed specifically for industrial applications.

Model	Displacement		DISP	Pressure				Pressure	Speed		Speed	Weight		Weight
				psi		psi	bar		rpm		rpm
	cm3	in3	Rated	Peak	Rated	Peak	Self Prime	Max.	lb	kg
K3VG63	63	3.84	5075	5800	350	400	2600	3250	106	48
K3VG112	112	6.83	5075	5800	350	400	2200	2700	150	68
K3VG180	180	11.0	5075	5800	350	400	1850	2300	190	86
K3VG280	280	17.1	5075	5800	350	400	1600	2000	353	160
K3VG180DT	180x2	11.0x2	5075	5800	350	400	1859	2300	353	160
K3VG280DT	280x2	17.1x2	5075	5800	350	400	1600	2000	661	300

K7VG Series - high pressure open circuit axial piston pumps designed for use in heavy duty industrial applications.

Model	Displacement		DISP	Pressure				Pressure	Speed		Speed	Weight		Weight
				psi		psi	bar		rpm		rpm
	cm3	in3	Rated	Peak	Rated	Peak	Self Prime	Max.	lb	kg
K7VG180	180	11.0	5075	5800	350	400	1800	2200	340	154
K7VG265	270	16.5	5075	5800	350	400	1600	1900	485	220

K3V Series - high pressure open circuit axial piston pumps designed specifically for the earth moving and construction industries where in excess of 2 million units have been supplied

Model	Displacement		DISP	Pressure				Pressure	Speed		Speed	Weight		Weight
				psi		psi	bar		rpm		rpm
	cm3	in3	Rated	Peak	Rated	Peak	Self Prime	Max.	lb	kg
K3V63DT	63x2	3.84x2	4970	5680	343	392	2650	3250	179	81
K3V112DT	112x2	6.83x2	4970	5680	343	392	2360	2700	276	125
K3V140DT	140x2	8.54x2	4970	5680	343	392	2150	2500	353	160
K3V180DT(H)	180x2	11.0x2	4970	5680	343	392	1950	2300	353	160
K3V280DTH	280x2	17.1x2	4970	5680	343	392	2000	2000	595	270

K5V Series - high pressure open circuit axial piston pumps designed with increased swash-plate angle resulting in higher power density (compactness).

Model	Displacement		DISP	Pressure				Pressure	Speed		Speed	Weight		Weight
				psi		psi	bar		rpm		rpm
	cm3	in3	Rated	Peak	Rated	Peak	Self Prime	Max.	lb	kg
K5V80DT	80x2	4.88x2	4970	5680	343	392	2460	3000	179	81
K5V140DT	140x2	8.54x2	4970	5680	343	392	2160	2500	276	125
K5V160DT	160x2	9.46x2	4970	5680	343	392	2000	2350	353	160
K5V200DT(H)	200x2	12.2x2	4970	5680	343	392	1900	2200	353	160

K7V Series - high pressure open circuit axial piston pumps specially designed with shortened length for compact machine installation requirements.

Model

Displacement

DISP

Pressure

Pressure

Speed

Speed

Weight

Weight

psi

psi

bar

rpm

rpm

cm3

in3

Rated

Peak

Rated

Peak

Self Prime

Max.

lb

kg

K7V63DT

63x2

3.84x2

5075

5800

350

400

2600

3250

190

86

HMB Series - Fixed Displacement, High Torque, Low Speed, Radial Piston Type Motor. Staffa HMB high torque, low speed, fixed displacement, radial piston motor is designed for rigorous industrial, marine and mobile applications.

Model	Displacement		DISP	Pressure				Pressure	Speed	Rated Torque		Weight		Weight
				psi		psi	bar		rpm
	in3	cm3	Rated	Max	Rated	Max	Max	lb-ft	N-m	lb	kg
HMB010	11.5	188	3000	3500	207	240	500	426	578	88	40
HMB030	27.0	442	3000	4250	207	293	450	1002	1359	161	73
HMB045	45.2	740	3625	4250	250	293	400	2019	2738	265	120
HMB060	60.0	983	3625	4250	250	293	300	2683	3638	317	144
HMB080	82.0	1344	3625	4250	250	293	300	3661	4964	317	144
HMB100	100.0	1639	3625	4250	250	293	250	4459	6046	317	144
HMB125	125.0	2050	3625	4250	250	293	220	5655	7668	478	217
HMB150	151.0	2470	3625	4250	250	293	220	6808	9232	584	265
HMB200	188.0	3080	3625	4250	250	293	175	8493	11517	584	265
HMB270	263.0	4310	3625	4250	250	293	125	11756	15941	926	420
HMB325	324.0	5310	3625	4250	250	293	100	14645	19859	946	429
HMHDB400	415.0	6800	3625	4250	250	293	120	18669	25315	1060	481
HMB700	708.0	11600	3000	3625	207	250	100	26640	36129	2315	1050

HMC Series - Dual Displacement, High Torque, Low Speed, Radial Piston Type Motor. The Staffa HMC high torque, low speed, dual displacement motor is designed for rigorous industrial, marine, and mobile applications where dual or continuous displacement is required.

Model	Displacement				DISP	Pressure				Pressure	Speed		Speed	Rated Torque				Weight		Weight
	in3		in3	cm3		psi		psi	bar		rpm		rpm	lb-ft		N-m
	Min	Max	Min	Max	Rated	Max	Rated	Max	Min	Max	Max	Min	Max	Min	lb	kg
HMC030	6.0	30	98	492	3000	3500	207	240	450	600	1047	174	1420	236	220	100
HMC045	9.9	45	153	737	3625	4000	250	275	450	600	1965	279	2665	378	331	150
HMC080	10.0	97.6	164	1600	3625	4000	250	275	300	600	4060	290	5505	393	379	172
HMC125	10.0	125	164	2048	3625	4000	250	275	190	600	5510	109	7472	148	516	234
HMC200	9.8	188	160	3080	3625	4000	250	275	175	600	8591	109	11649	148	622	282
HMC270	20.0	280	328	4588	3625	4000	250	275	120	350	12796	435	17351	590	992	450
HMC325	95.0	325	1557	5326	3625	4000	250	275	100	350	14826	3843	20104	5211	1014	460

HPC Series - Dual Displacement, High Power, Radial Piston Type Motor. The Staffa HPC series is a high power version of the HMC Series, for high performance applications.

Model	Displacement				DISP	Pressure				Pressure	Speed		Speed	Rated Torque				Weight		Weight
	in3		in3	cm3		psi		psi	bar		rpm		rpm	lb-ft		N-m
	Min	Max	Min	Max	Rated	Max	Rated	Max	Min	Max	Max	Min	Max	Min	lb	kg
HPC080	10	97.6	164	1600	3625	3625	250	250	365	630	4444	295	6025	400	379	172
HPC125	20	125	328	2048	3625	3625	250	250	300	630	5679	756	7700	1025	516	234
HPC200	20	188	328	3087	3625	3625	250	250	230	630	8703	774	11800	1050	622	282
HPC270	20	280	328	4588	3625	3625	250	250	545	150	12926	738	17525	1000	992	450
HPC325	30	325	492	5326	3625	3625	250	250	515	130	15046	1162	20400	1575	1014	460

K3X Series - Fixed Displacement Axial Piston Type Motor. The K3X fixed displacement axial piston motor is a small, compact motor designed for mid and high speed applications.

Model	Displacement		DISP	Pressure				Pressure	Speed	Rated Torque		Weight		Weight
				psi		psi	bar		rpm
	cm3	in3	Rated	Max	Rated	Max	Max	lb-ftM	N-m	lb	kg
K3X63	63	3.84	4550	5000	314	345	3000	236	320	51	23
K3X80	82	5.00	4550	5000	314	345	3000	302	410	88	40
K3X90	89	5.43	4550	5000	314	345	3000	329	446	88	40
K3X112	111	6.83	4550	5000	314	345	3000	409	554	88	40

M3X Series - Fixed Displacement Axial Piston Type Motor. These multi-purpose motors are available in a wide range of fixed displacements. Optional integral mechanical static brakes are available.

Model	Displacement		DISP	Pressure				Pressure	Speed	Rated Torque		Weight		Weight
				psi		psi	bar		rpm
	cm3	in3	Rated	Max	Rated	Max	Max	lb-ft	N-m	lb	kg
K3X63	63	3.84	4550	5000	314	345	3000	236	320	51	23
K3X80	82	5.00	4550	5000	314	345	3000	302	410	88	40
K3X90	89	5.43	4550	5000	314	345	3000	329	446	88	40
K3X112	111	6.83	4550	5000	314	345	3000	409	554	88	40

M3B Series - Dual Displacement Axial Piston Type Motor. These multi-purpose motors are available in a range of dual and continuous displacements. Optional integral mechanical static brakes are available.

Model	Displacement						DISP	Pressure				Pressure	Speed			Speed	Rated Torque		Weight		Weight
	cm3			in3			in3	psi		psi	bar		rpm			rpm
	100%	50%	33%	100%	50%	33%	Rated	Max	Rated	Max	100%	50%	33%	lb-ft	N-m	lb	kg
M3B200	195	106	-	11.9	6.47	-	4600	5000	320	350	1900	2930		730	990	159	72
M3B280	280	140	93	17.1	8.5	5.7	4350	5000	300	350	1700	2200		988	1340	205	93
M3B530	533	267	178	32.5	16.3	10.9	4250	5000	294	343	1400	1700		1840	2500	324	147
M3B800	800	400	267	48.8	24.4	16.3	4250	5000	294	343	1200	1500		2760	3750	518	235

M3X/M3B-RG Series - Fixed/Variable Displacement Axial Piston Geared Type Motor. M Series motors are available with reduction gear for applications requiring multiplied torque at lower speeds.

Model	Displacement		DISP	Pressure		Pressure	Speed	Rated Torque		Rated Torque	Weight
				psi	bar	rpm	lb-ft	N-m
	cm3	in3	Max	Max	Max	Max	Min	lb	Kg
M3X200-RG03S5.7	840	51.3	3200	225	270	2161	2930
M3X280-RG06S6.4	1610	98.2	3000	207	190	3894	5280
M3B280-RG06S6.4	1610	98.2	3000	207	190	3894	5280
M3X530-RG11S5.7	3010	183.7	3000	207	150	7280	9870
M3B530-RG11S5.7	3010	183.7	3000	207	150	7280	9870
M3X800-RG16S6.4	5120	312.4	2800	197	130	11801	16000
M3B800-RG16S6.4	5120	312.4	2800	197	130	11801	16000

M2X/M5X Series - Fixed Displacement Axial Piston Type Motor. The M2X and M5X fixed displacement axial piston motors are specifically designed for excavator swing operation.

Model	Displacement		DISP	Pressure				Pressure	Speed	Rated Torque		Weight		Weight
				psi		psi	bar		rpm
	cm3	in3	Rated	Max	Rated	Max	Max	lb-ft	N-m	lb	kg
M2X63	64	3.91	4260	4970	294	343	2200	221	300	64	29
M5X130-121	122	7.44	4970	5970	343	412	1850	490	665	104	47
M5X130	129	7.87	4700	5680	324	392	1850	494	670	104	47
M5X180-169	169	10.3	4970	5970	343	412	1680	679	921	135	61
M5X180	180	11.0	4700	5680	324	392	1680	687	932	135	61
M2X210	210	17.1	4260	4970	294	343	1400	723	980	146	66

BROCHURE

M2X/M5X-RG Series - Fixed Displacement Axial Piston Geared Type MotorM2X an M5X Series motors are available with reduction gear for applications requiring multiplied torque at lower speeds.

Model	Displacement		DISP	Pressure		Pressure	Speed	Rated Torque		Weight		Weight
				psi	bar	rpm
	cm3	in3	Max	Max	Max	lb-ft	N-m	lb	kg
M2X63CHB-RG06D	1230	75.1	4000	276	115	3980	5400	229	104
M5X130CHB-RG11D	2590	158	3770	260	92	7890	10700	478	217
M5X130CHB-RG14D	2590	158	4700	324	92	10180	13800	617	280
M5X180CHB-RG14D	3400	207	3700	255	84	10180	13800	637	289
M5X180CHB-RG20D	4540	277	4161	287	67	15270	20700	924	419

PV Series - Hydraulic Type Joystick Pilot Valve (for Mobile Usage)The PV48K and PV48M are four-way (dual axis), hand operated, joystick type pilot valves. These valves feature a cast aluminum body and dual area spool design, having light weight and reduced lever input force. The PV6P is a two-way (single axis) joystick pilot valve.

Model	Max. Inlet Pressure		Max. Inlet Pressure	Outlet Pressure Metering Range		Max. Back Pressure		Max. Cont. Flow		Max. Cont. Flow	Lever Angle	Actuation torque		Actuation torque
	psi	bar	psi	bar	psi	bar	GPM	I/min	deg	lb-ft	N-m
PV48K	1000	69	0 ~ 420	0 ~ 29	40	2.8	5.3	20	±25	2.8	3.8
PV48M	1000	69	0 ~ 420	0 ~ 29	40	2.8	4	15	±25	2.8	3.8
PV6P	1000	69	0 ~ 420	0 ~ 29	40	2.8	2.6	10	±23	9.0	12.2
PVD6P	1000	69	0 ~ 420	0 ~ 29	40	2.8	2.6	10	±12.4	6.34	8.6
PVD8P	1000	69	0 ~ 420	0 ~ 29	40	2.8	2.6	10	±12.4	13.2	17.9

RCV Series - Hydraulic Type Foot Control Pilot Valve (for Mobile Usage)The RCV8C is a foot operated, pedal type remote-control valve developed specifically for the mobile hydraulics industry. This valve is available in a 1 or 2-section or 2-function mono-block (2-way each) configuration.

Model

Max. Inlet Pressure

Max. Inlet Pressure

Outlet Pressure Metering Range

Max. Back Pressure

Max. Cont. Flow

Max. Cont. Flow

Lever Angle

Actuation torque

Actuation torque

psi

bar

psi

bar

psi

bar

GPM

I/min

deg

lb-ft

N-m

RCV8C

1420

98

640

44.2

40

2.8

4

15

±12.4

13.2

17.9

ERU Series - Electronic Type Joystick Pilot Valves (for Mobile Usage)The ERU Series has the same look, feel, and proven performance as our hydraulic pilot valves. All of the ERU units feature a reliable and long life non-contact type potentiometer. The body of the ERU is constructed with a heavy duty water proof and electromagnetic noise resistant housing. The ERU controllers can be specified with voltage or current outputs. The ERUH modulation handle features a non-contact type sliding thumb switch, which can control a proportional solenoid directly.

Model	Description	Current Output			Current Output	Voltage Output		Lever Angle	Actuation Torque		Actuation Torque
		Input	PWM		Input	Analog	deg	lbt-ft	N-m
ERU2	Dual Axis Joystick	7.6-12.6vdc	500 Hz	25mA	4.5-5.6 vdc	5vdc	±23	1.8	2.4
ERUS	Single lever	7.6-12.6vdc	500 Hz	25mA	4.5-5.6 vdc	5vdc	±21.5	1.8	2.4
ERUH	Modulation Handle	7.6-12.6vdc	500 Hz	25mA	4.5-5.6 vdc	5vdc	-	-	-

ERUP Series - Electronic Type Foot Control Pilot Valves (for Mobile Usage)The ERUP Series have the same look, feel, and proven performance as our hydraulic pilot valves. The foot operated units are available as single or dual pedal configuration. All of the ERU units feature a reliable and long life non-contact type potentiometer. The body of the ERU is constructed with a heavy duty water proof and electromagnetic noise resistant housing. The ERU controllers can be specified with voltage or current outputs.

Model	Description	Current Output			Current Output	Voltage Output		Lever Angle	Actuation Torque		Actuation Torque
		Input	PWM		Input	Analog	deg	lbt-ft	N-m
ERUP1	Single Pedal Type	7.6-12.6vdc	500 Hz	25mA	4.5-5.6 vdc	5vdc	±12.4	11.3	15.3
ERUP2	Dual Pedal	7.6-12.6vdc	500 Hz	25mA	4.5-5.6 vdc	5vdc	±12.4	11.3	15.3

HR Series - Suitable for applications requiring limited rotation.

Model	Displacement				DISP	Pressure		Pressure	Angle	Rated Torque		Rated Torque	Weight		Weight
	Per Radian		Total Travel		Total Travel	psi	bar
	cm3	in3	cm3	in3	Rated	Rated	deg	lb-ft	N-m	lb	kg
HR-08S-04	20.8	1.3	102	6.2	2000	138	280	166	225	15	7
HR-11S-06	57.3	3.5	280	17.1	2000	138	280	463	628	37	17
HR-15S-08	154.0	9.4	753	46.0	2000	138	280	1266	1717	77	35
HR-20S-10	438.0	26.7	1450	88.5	2000	138	190	3544	4806	198	90
HR-20S-18	755.0	46.1	2500	153.0	1000	69	190	2929	3972	231	105
HR-08D-04	41.6	2.5	73	4.5	2000	138	100	376	510	18	8
HR-11D-06	115.0	7.0	200	12.2	2000	138	100	1049	1422	40	18
HR-15D-08	308.0	18.8	538	32.8	2000	138	100	2821	3825	82	37
